Tenn Frescon Frame Plugs are designed to speed up on-site assembly operations. These plugs make it easy to fasten timber battens, aluminium or wooden door and window frames, wall cabinetry etc. to brickwork and concrete. With Frescon plugs, there is no need to mark out the drill-hole locations; the anchor holes can be drilled through the clearance holes in the attachments.

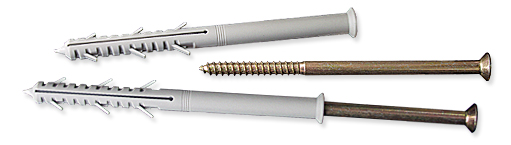

Frescon Frame Plugs are supplied as a two-piece unit consisting of a full length Polyamide fi-6 expansion sleeve and a hardened carbon steel expander screw. The long length sleeve gives full support to the steel screw ensuring safe anchorage and consistent fastening results.
•
Side lugs on the anchor body engage the frame to give extra support and prevent anchor rotation during setting.
•
Plastic sleeve isolates the anchor's internal steel screw from contact with the aluminium frame thereby preventing dissimilar metal contact that would result in galvanic contact and rust staining.
•
May also be used to fasten timber or aluminium door and window frames.
